F11-005 parker piston pump

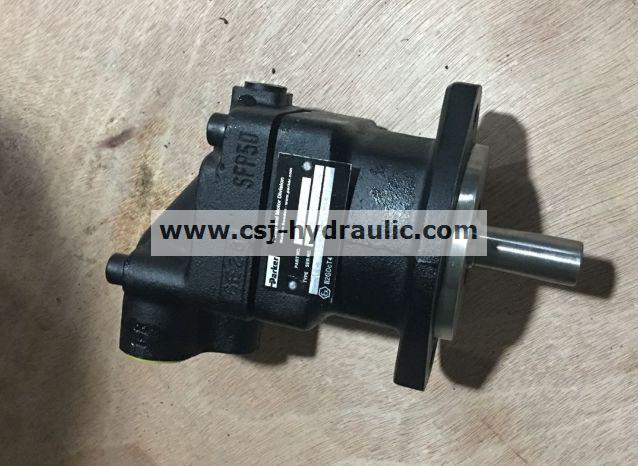

Pike Motor F11, F12 Series F11-005-RB-CH-K-000 Details

Parker hydraulic motor F11, F12 series hydraulic motor, the pressure of 35Mpa.

F12 series according to the current ISO and SAE standard configuration installation flange and shaft end.
1, the usual spherical plunger design also makes the F11 / F12 motor can be used in high shaft speed; to adjust the pressure to 480 bar can provide high output power capability.
2, shaft and cylinder was 40 ° angle of the location of the motor / pump compact, light weight.
3, multi-stack piston ring to protect such as to prevent low leakage and thermal shock resistance to provide an important advantage.
4, with a highly designed pump valve plate, increasing its self-priming speed and low noise, and can provide left and right rotation two.
5, F11 / F12 series motors are in high torque, low speed start.
6, the unique timing gear, synchronous shaft and cylinder design, so F11 / F12 very high "G" force and torsional vibration.

7, heavy cylindrical roller bearings can withstand a large number of external axial and radial load.

8, F11 / F12 series of very few operating parts, this simple and direct design makes them a very reliable motor / pump.
9, the unique piston lock, timing gear and bearing settings, coupled with very little running parts and a strong design, product life long, reliable and proven.

others model number ：

model :                                       part number

F11-005-MB-CV-K-000-000-0                 3707249

F11-005-HU-CV-K-000-000-0                 3707308

F11-010-HU-CV-K-000-000-0                 3707310

F11-010-MB-CV-K-000-000-0                 3706030

F11-012-HF-IV-K-000-000-0                 3786708

F11-012-HF-IV-K-349-000-0                 3787600

F11-014-HB-CV-K-000-000-0                 3782830

F11-014-HF-IV-K-000-000-0                 3783287

F11-019-MB-CV-K-000-000-0                 3707893

F11-019-HU-SV-T-000-000-0                 3707314

F12

model :                                       part number

F12-030-MF-IV-K-000-000-0                 3799844

F12-030-MS-SV-T-000-000-0                 3799852

F12-030-MS-TV-S-000-000-0                 3799616

F12-030-MF-IV-D-000-000-0                 3799843

F12-030-MS-SV-S-000-000-0                 3799855

F12-040-MS-SV-S-000-000-0                 3799532

F12-040-MF-IV-K-000-000-0                 3799526

F12-040-MS-SV-T-000-000-0                 3799533

F12-040-MF-IV-D-000-000-0                 3799525

F12-060-MF-IV-D-000-000-0                 3799988

F12-060-MS-SV-S-000-000-0                 3799998

F12-060-MF-IV-K-000-000-0                 3799989

F12-060-MS-SV-T-000-000-0                 3799999

F12-080-MF-IV-D-000-000-0                 3780767

F12-080-MS-SV-T-000-000-0                 3780784

F12-080-MF-IV-K-000-000-0                 3780772

F12-080-MS-SV-S-000-000-0                 3780783

F12-090-MS-SV-T-000-000-0                 3785604

F12-090-MF-IV-D-000-000-0                 3785518

F12-090-MF-IV-K-000-000-0                 3785609

F12-090-MS-SV-S-000-000-0                 3785875

F12-110-MS-SV-S-000-000-0                 3781542

F12-110-MF-IV-K-000-000-0                 3781534

F12-110-MF-IV-D-000-000-0                 3781530

F12-110-MS-SV-T-000-000-0                 3782636

F12-125-MS-SV-S-000-000-0                 3785504

F12-125-MF-IV-D-000-000-0                 3785866

F12-150-MF-SV-S-000-000-0                 3787725

F12-150-MF-CV-K-000-000-0                 3787721

F12-250-QF-SV-F-000                       3787182

F12-250-QF-SV-K-000                       3787184
